| Commodore Semiconductor Group: NMOS 6500 Series Microprocessors | |
| ../ | [Parent directory] |
| Date | Size | Filename | Description | |
|---|---|---|---|---|
| 1999-12-18 | 164553 | 650x-01.gif | features; members of the microprocessor family | |
| 1999-12-18 | 115759 | 650x-02.gif | internal architecture | |
| 1999-12-18 | 117564 | 650x-03.gif | electrical characteristics | |
| 2000-02-14 | 115563 | 650x-04.gif | clock timing | |
| 1999-12-18 | 131604 | 650x-05.gif | 1 MHz clock timing | |
| 1999-12-18 | 136321 | 650x-06.gif | 3 MHz clock timing | |
| 1999-12-18 | 186050 | 650x-07.gif | signal description. According to William Levak, there is an error under the heading "Non-Maskable Interrupt (NMI)". About the middle of the paragraph is the line: "NMI also requires an external 3K register to VCC for proper wire-OR operation." This, of course, should say resistor and not register. | |
| 1999-12-18 | 205188 | 650x-08.gif | addressing modes; instruction set | |
| 1999-12-18 | 192547 | 650x-09.gif | programming model; instruction set op-codes | |
| 1999-12-18 | 107257 | 650x-10.gif | pin configuration: 6502, 6503, 6504, 6505 | |
| 1999-12-18 | 86343 | 650x-11.gif | pin configuration: 6506, 6507, 6512 | |

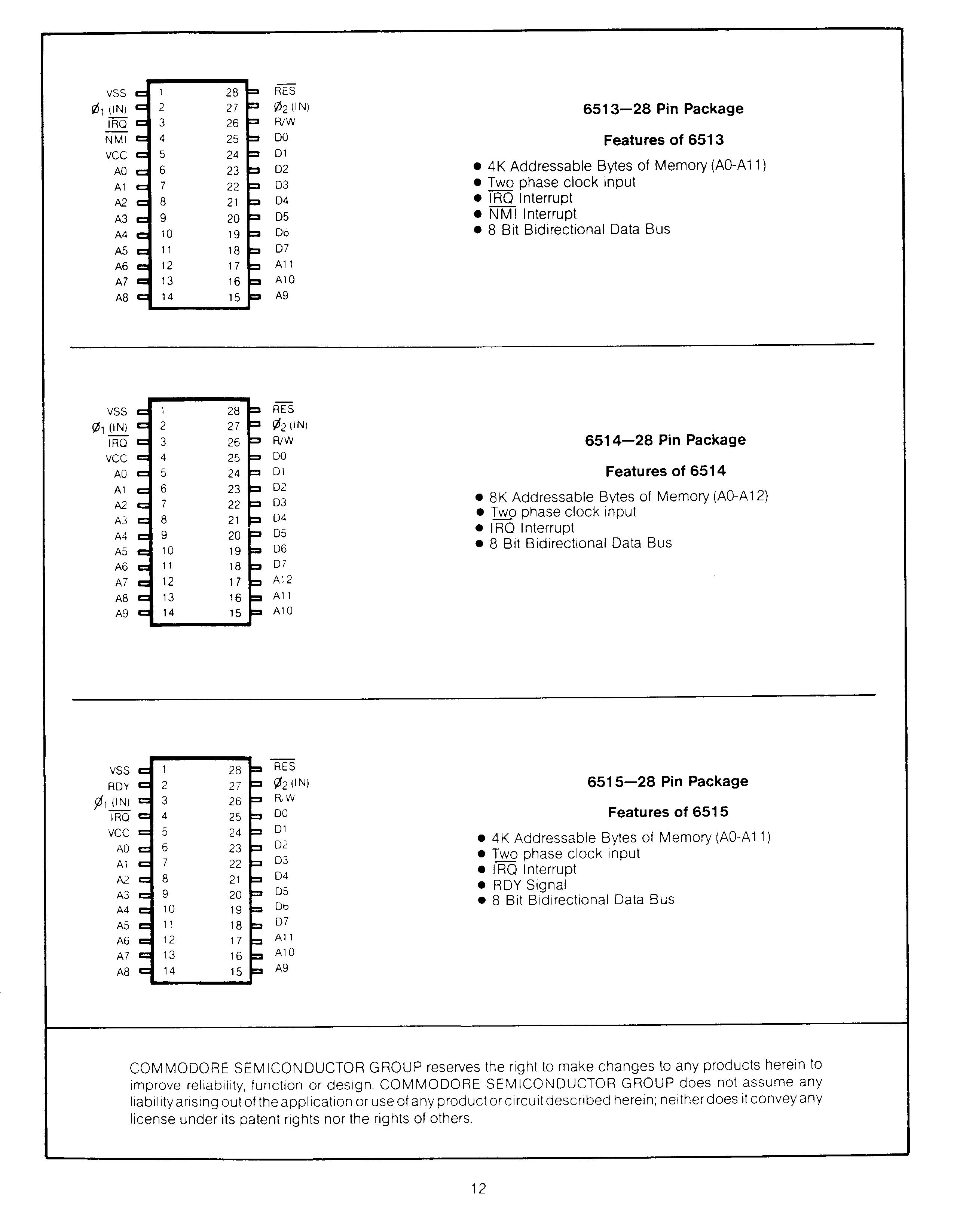

| 1999-12-18 | 94969 | 650x-12.gif | pin configuration: 6513, 6514, 6515 |
