Commodore PET Schematics | Display, ROM, RAM, Timing, ieee, Cassette, Keyboard & More



Click on any graphic below to enlarge it.

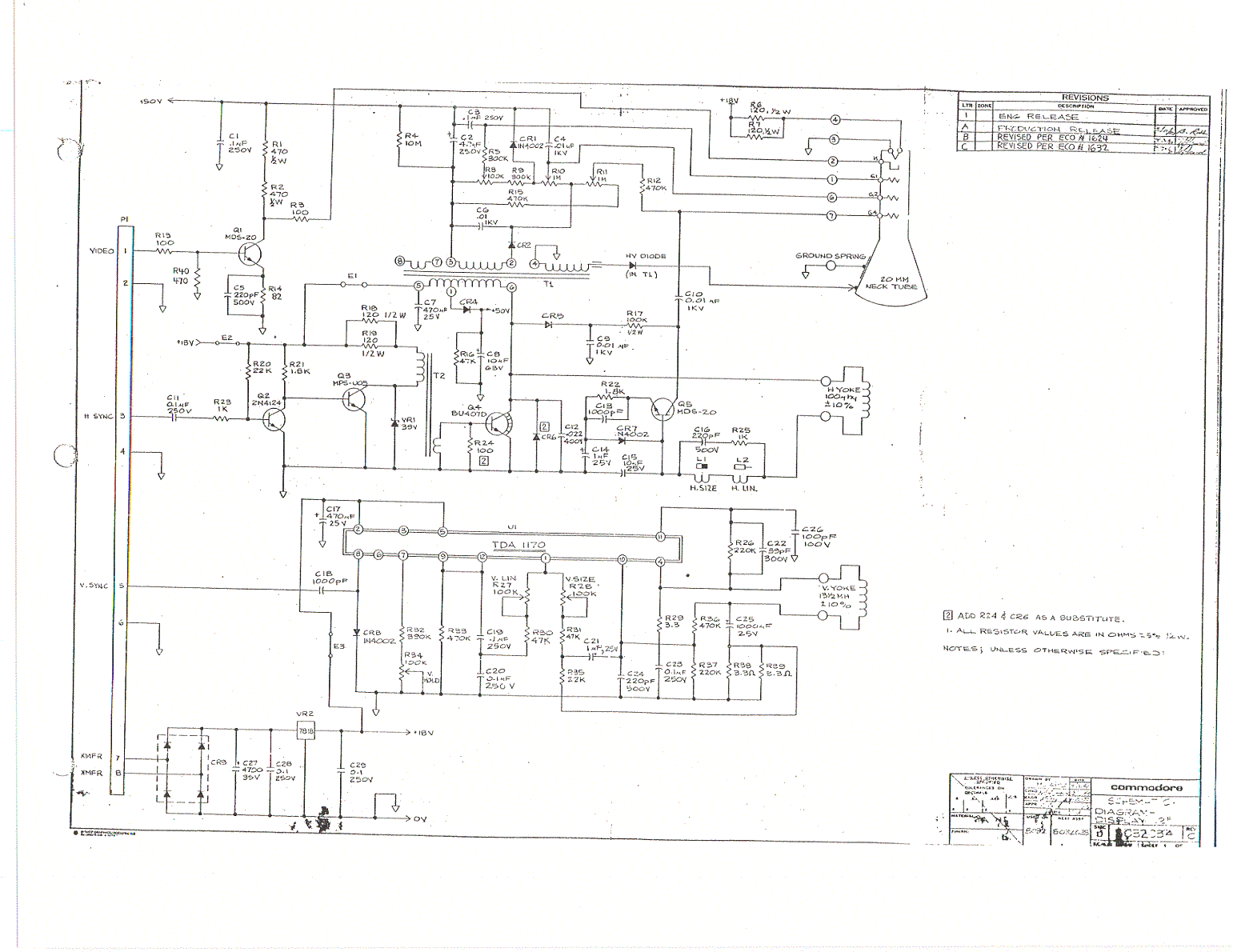

Commodore PET 8 Inch Display Schematic

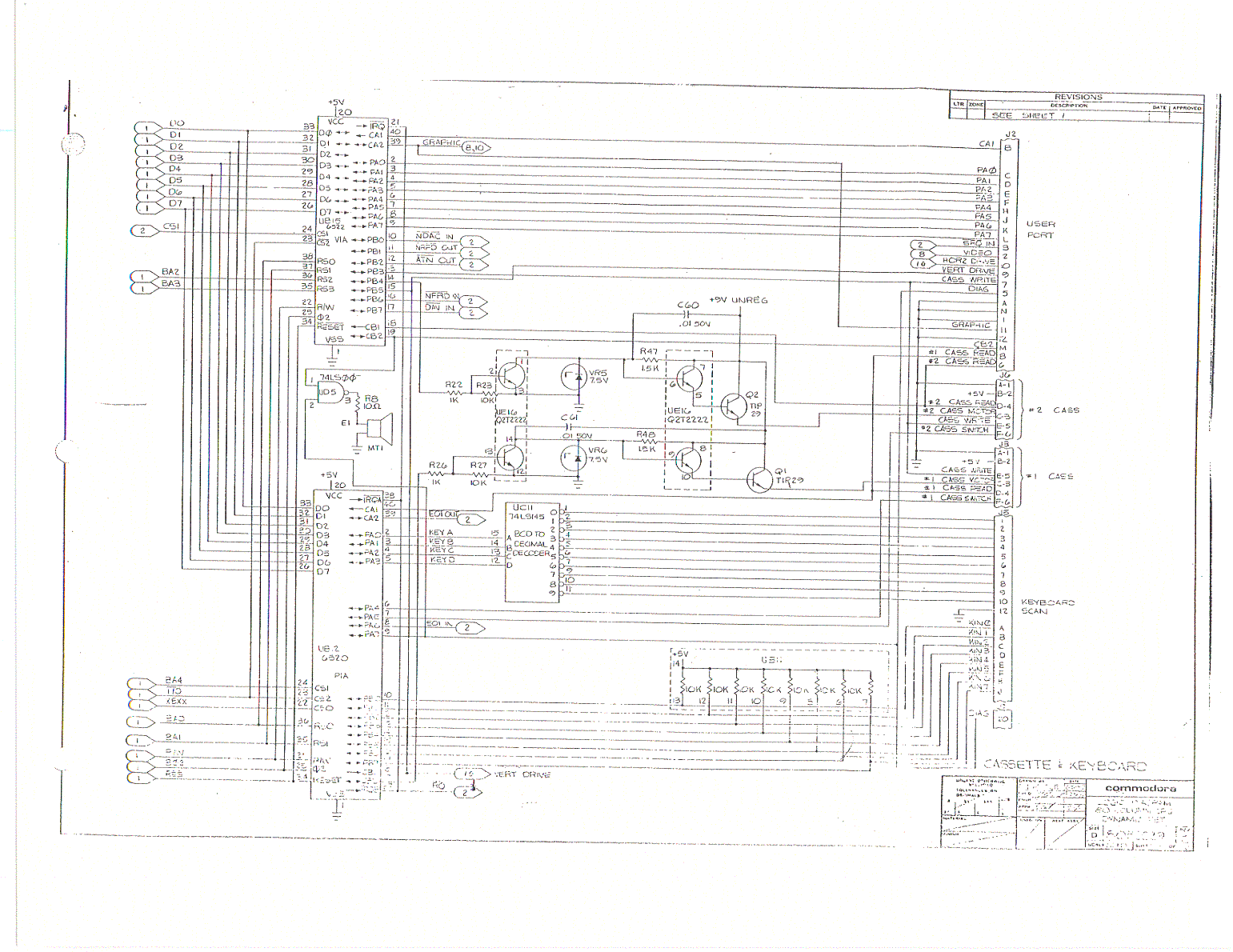

Commodore PET Cassette & Keyboard Schematics

Commodore PET CPU & Memory Schematics

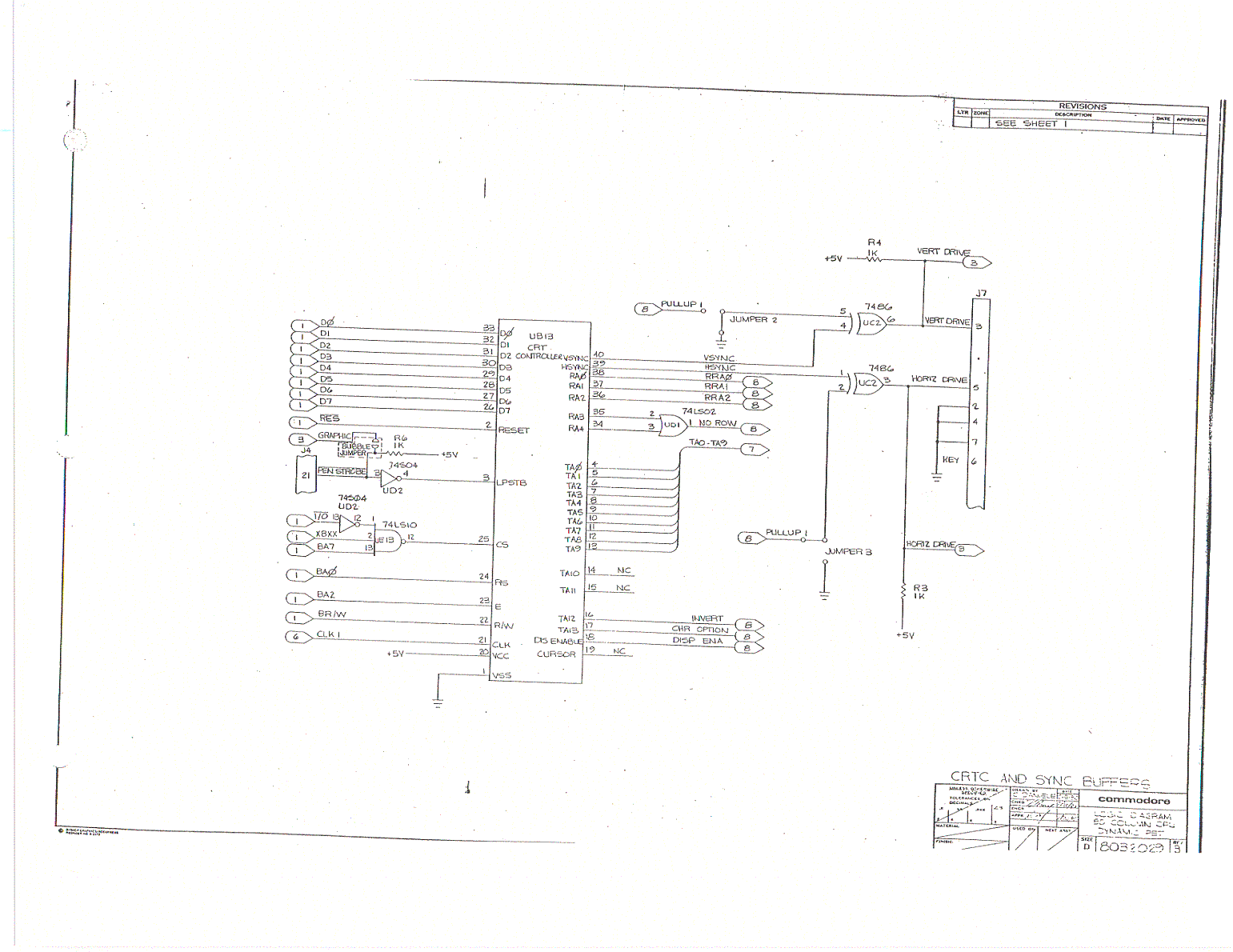

Commodore PET CRTC Sync Schematics

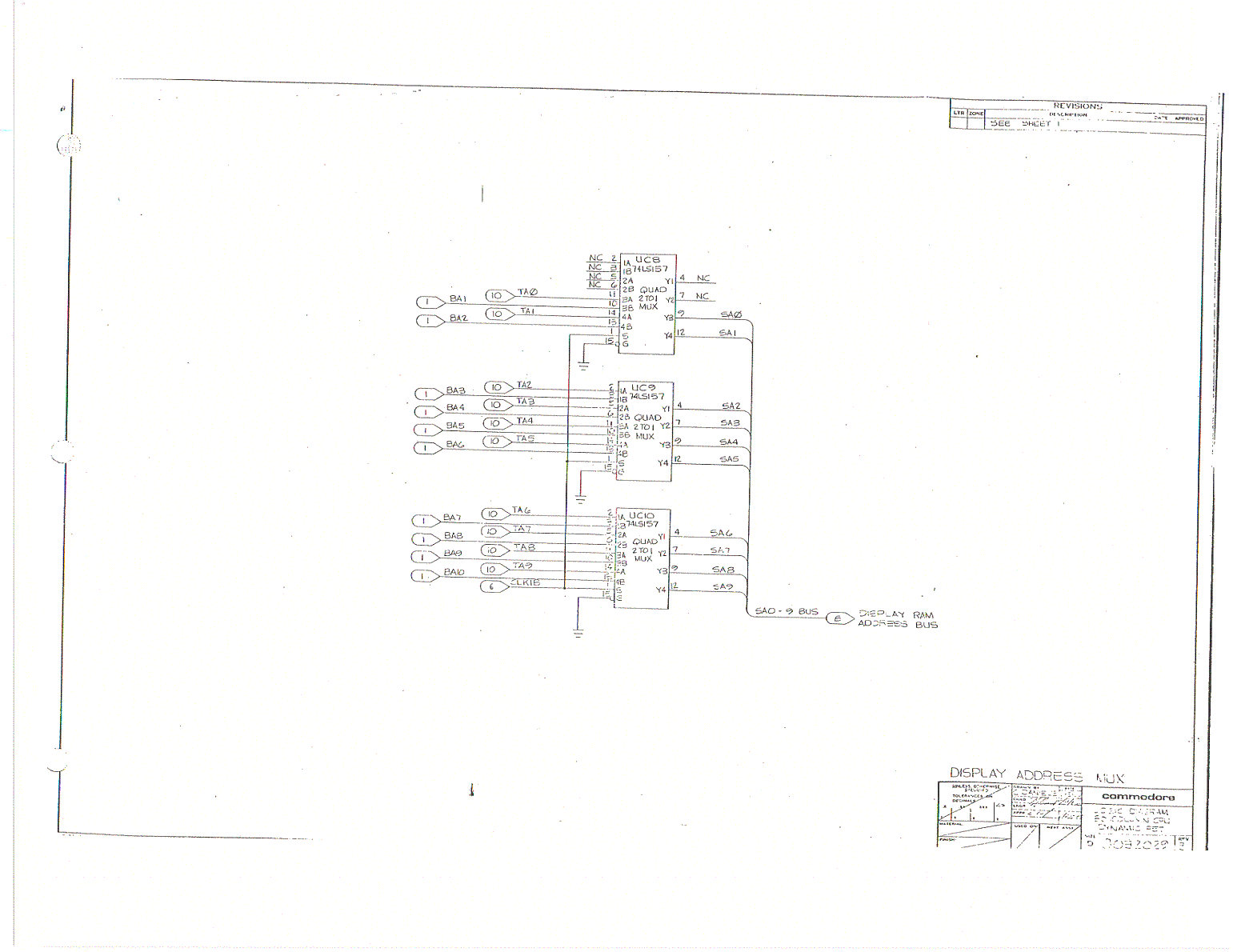

Commodore PET Display Mux Schematics

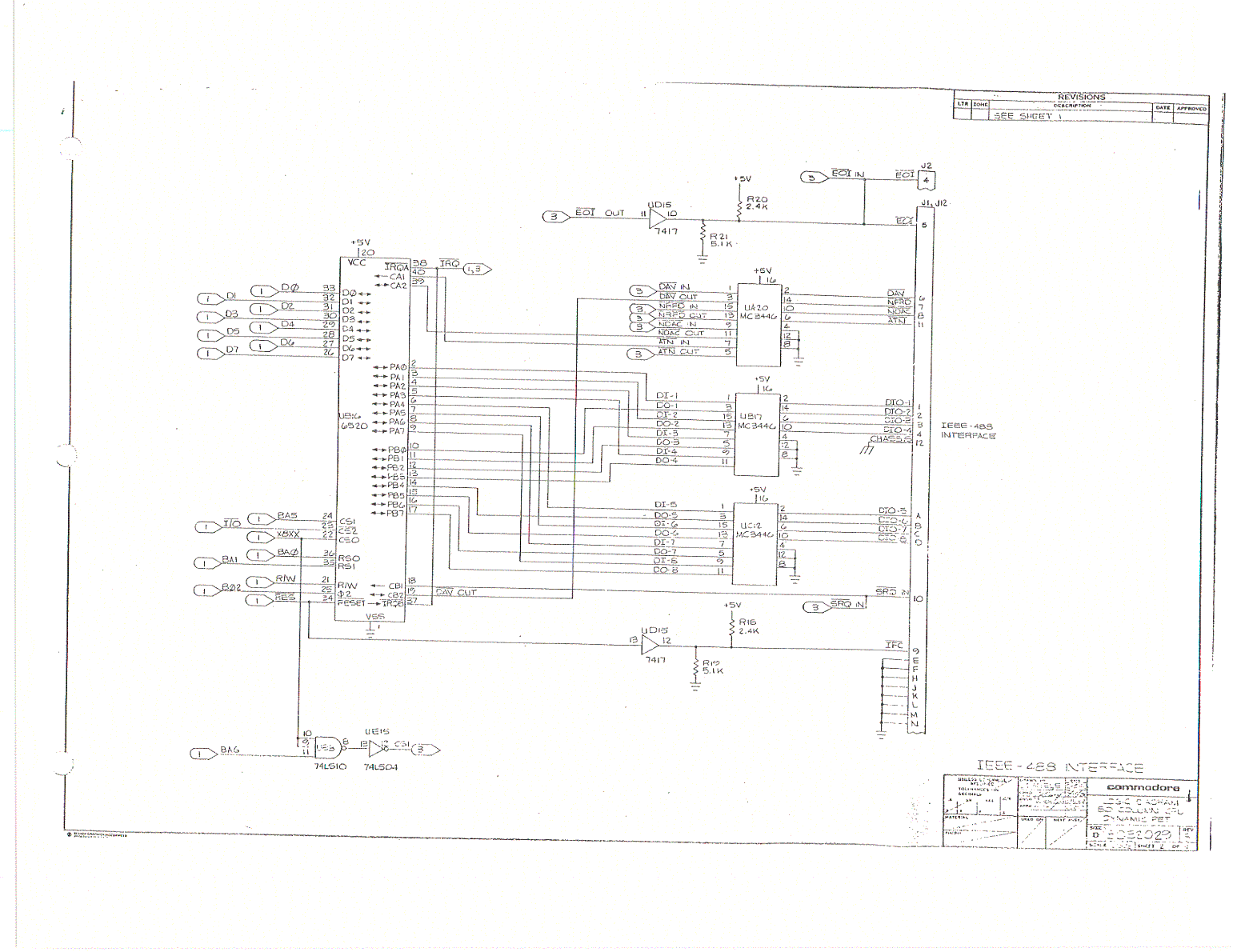

Commodore PET ieee 488 Schematic

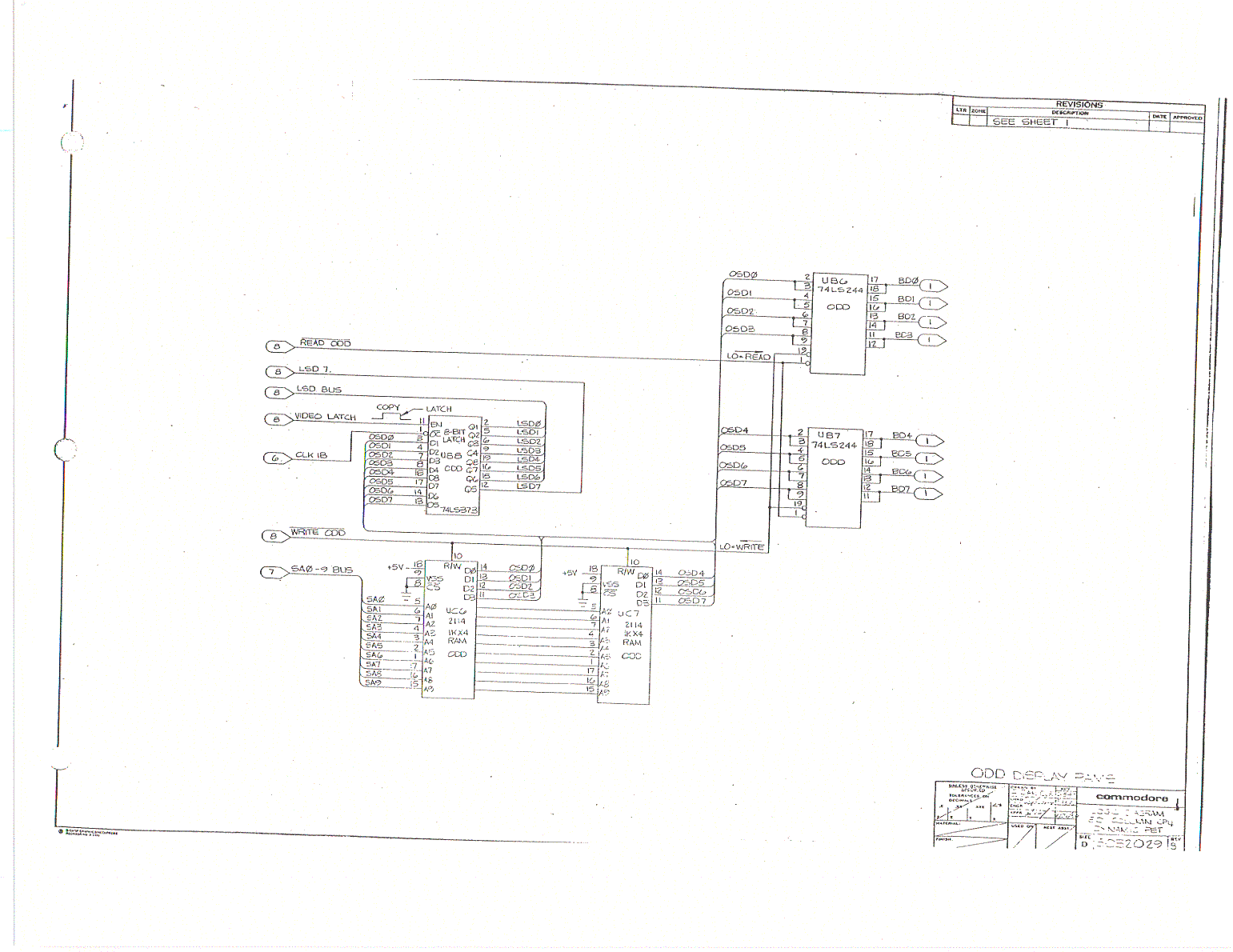

Commodore PET Odd Display Ram Schematics

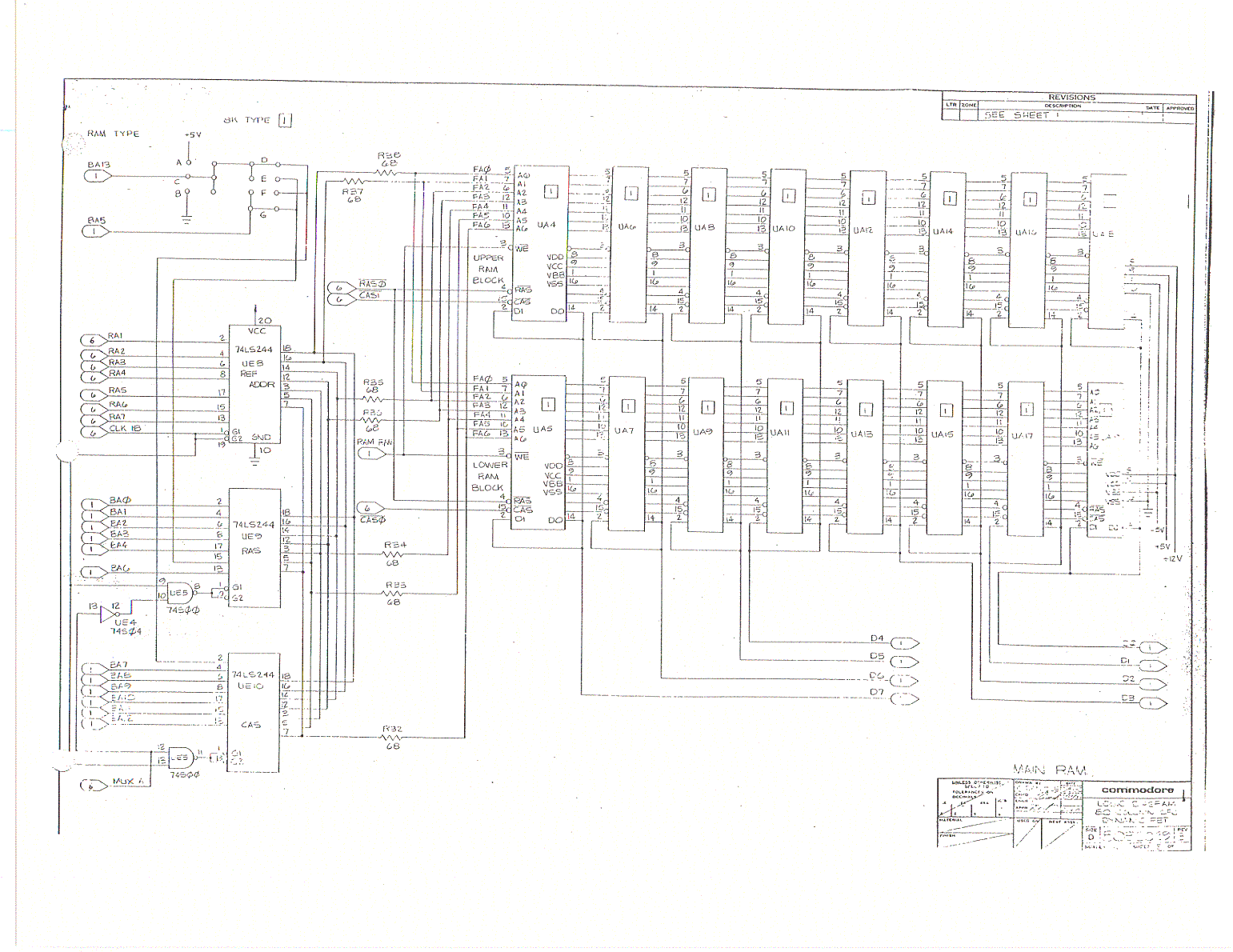

Commodore PET RAM Schematic

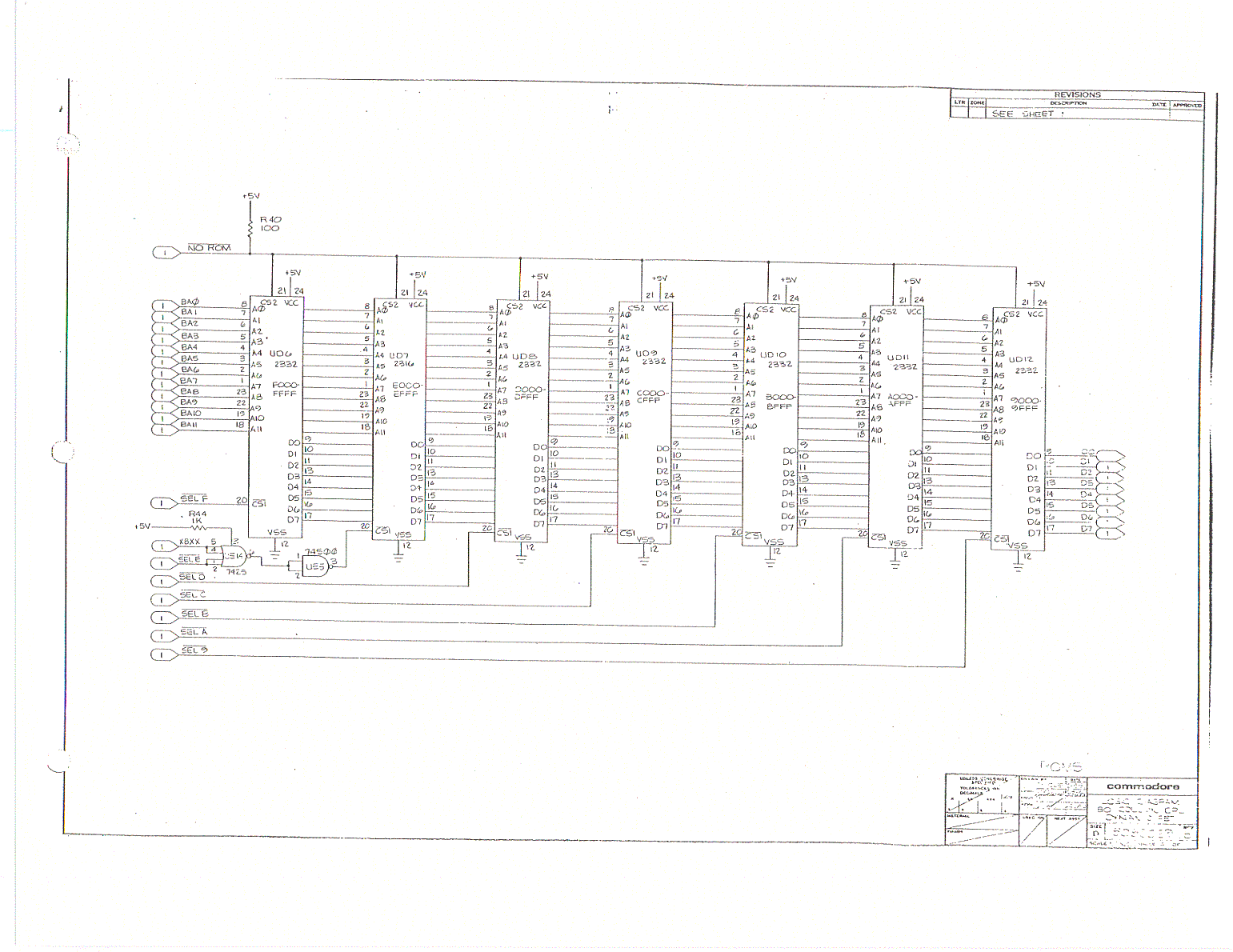

Commodore PET ROM Schematic

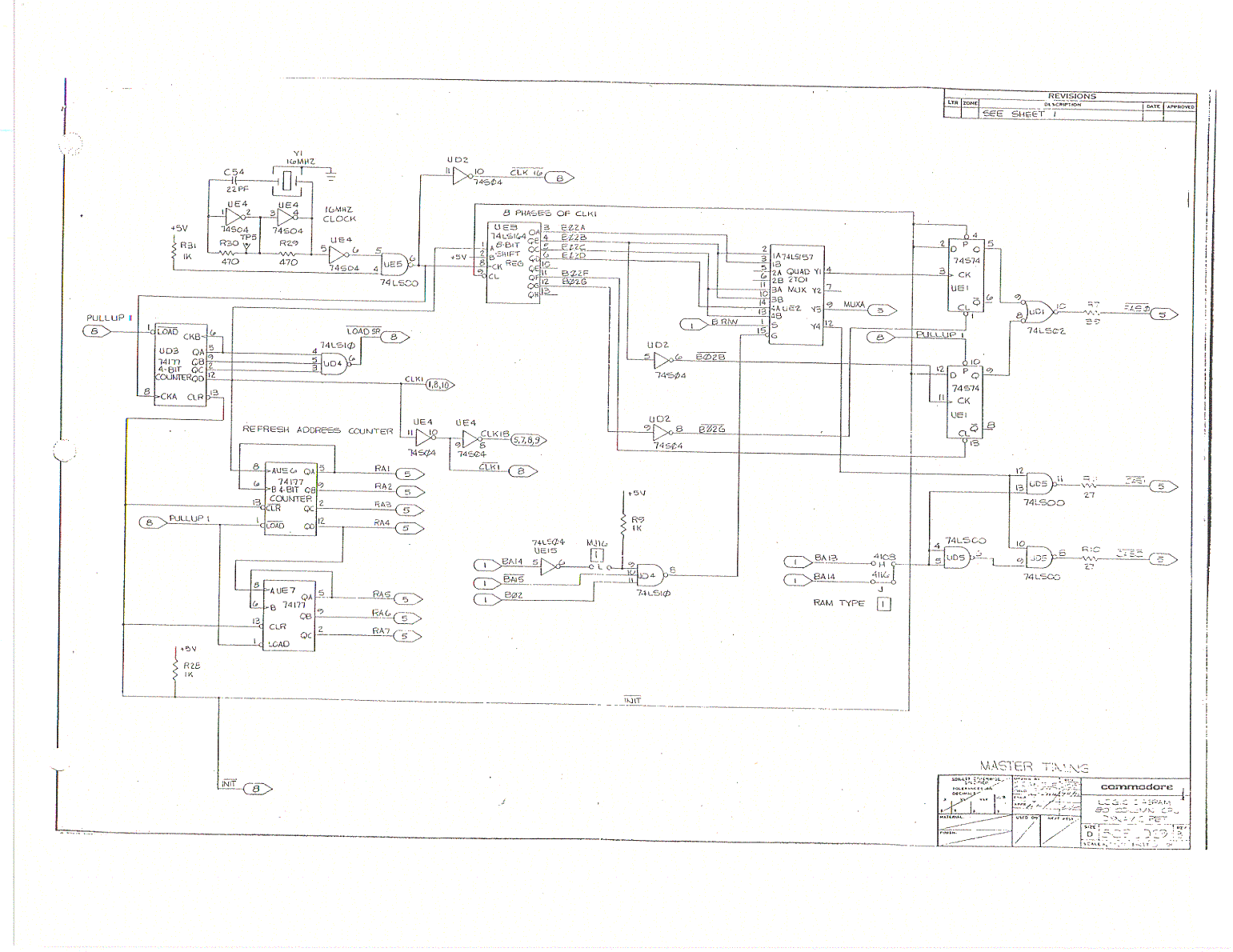

Commodore PET Timing Schematic

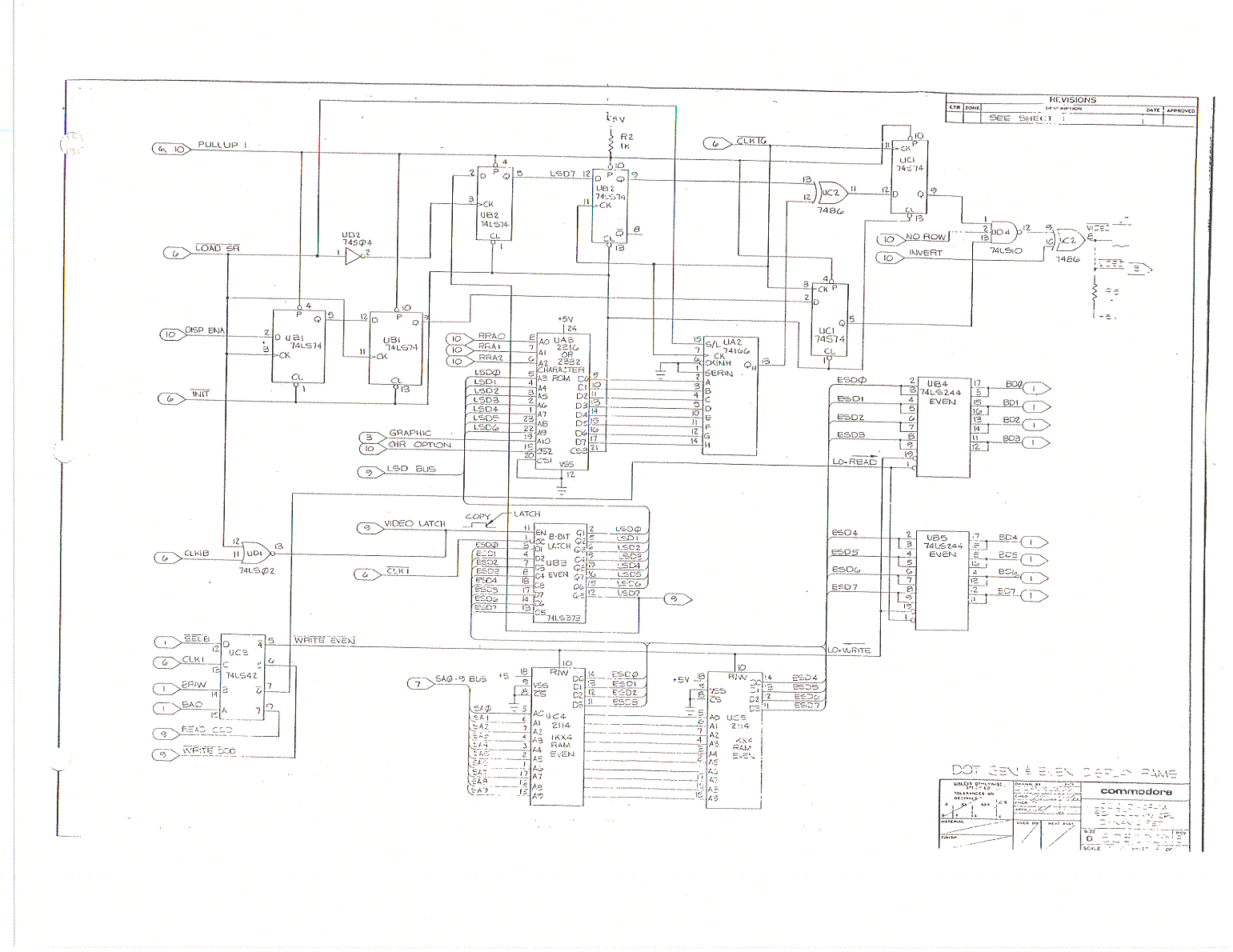

Commodore PET Dot Gen Display RAMS

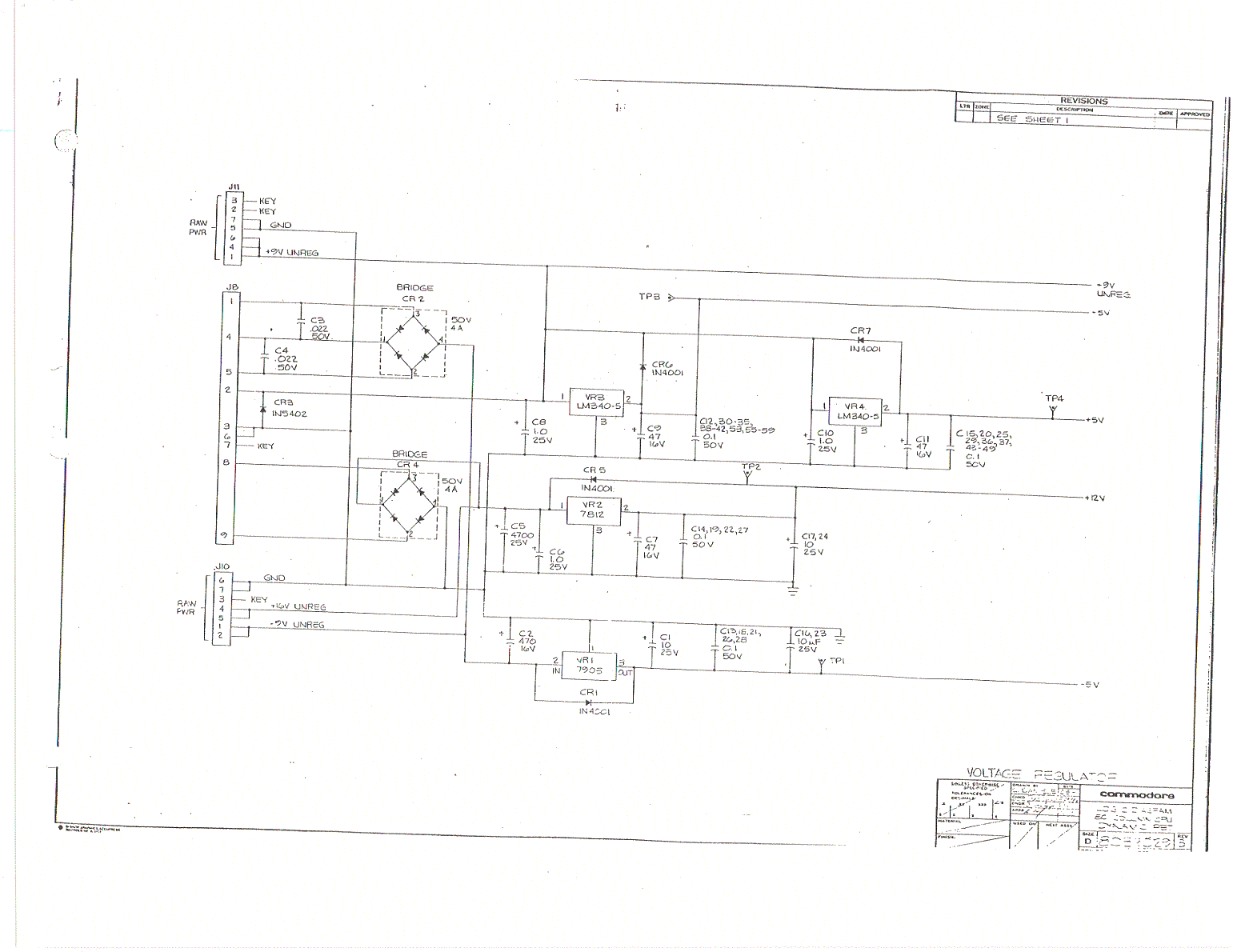

Commodore PET Voltage Regulator Schematic
