Commodore PET Digital Floppy Schematics & Assembly Information




Click on any graphic below to enlarge it.

Commodore PET Digtial Floppy Assembly

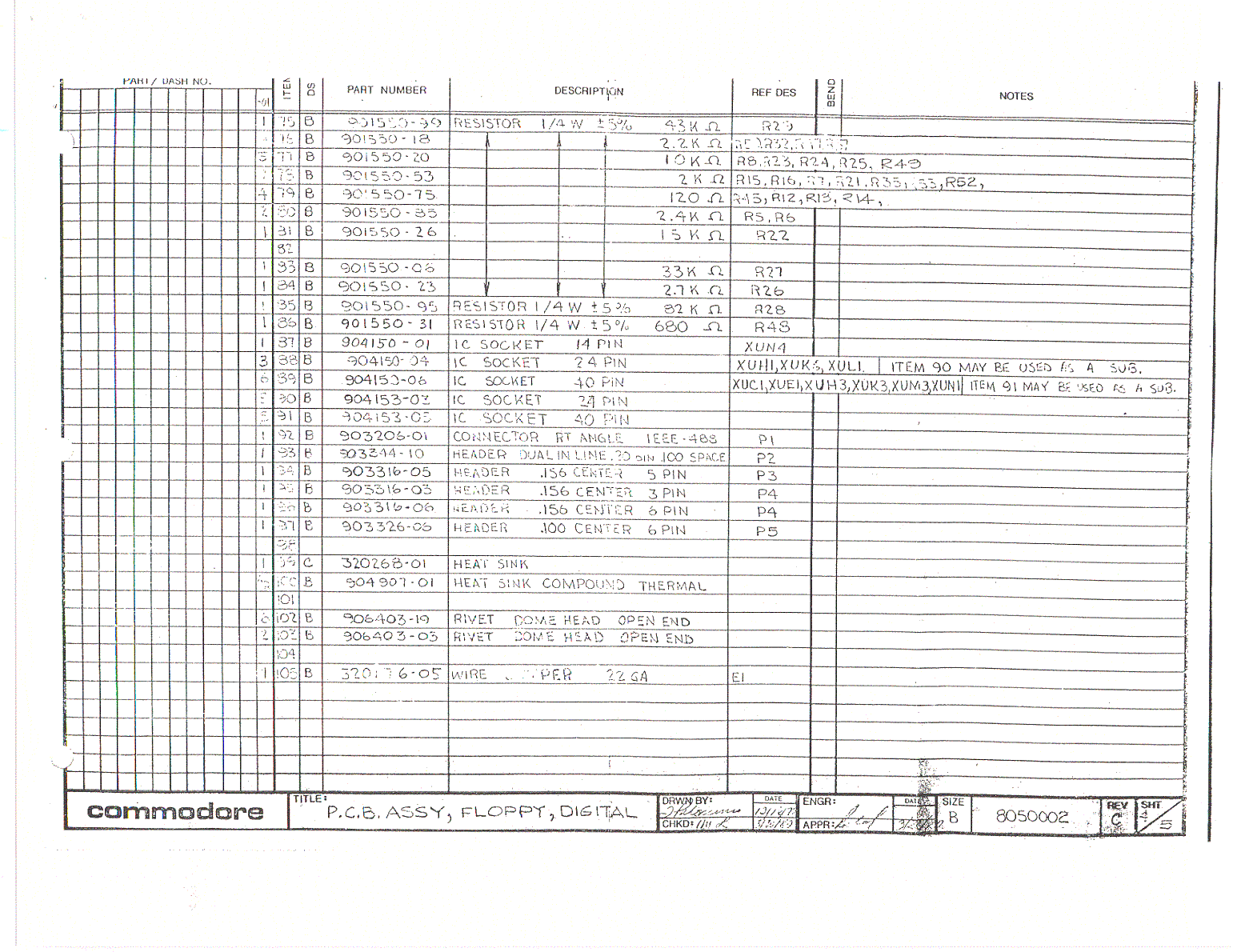

Commodore PET Digtial Floppy Parts List

Commodore PET Digtial Floppy Parts List

Commodore PET Digtial Floppy Parts List

Commodore PET Digtial Floppy Parts List

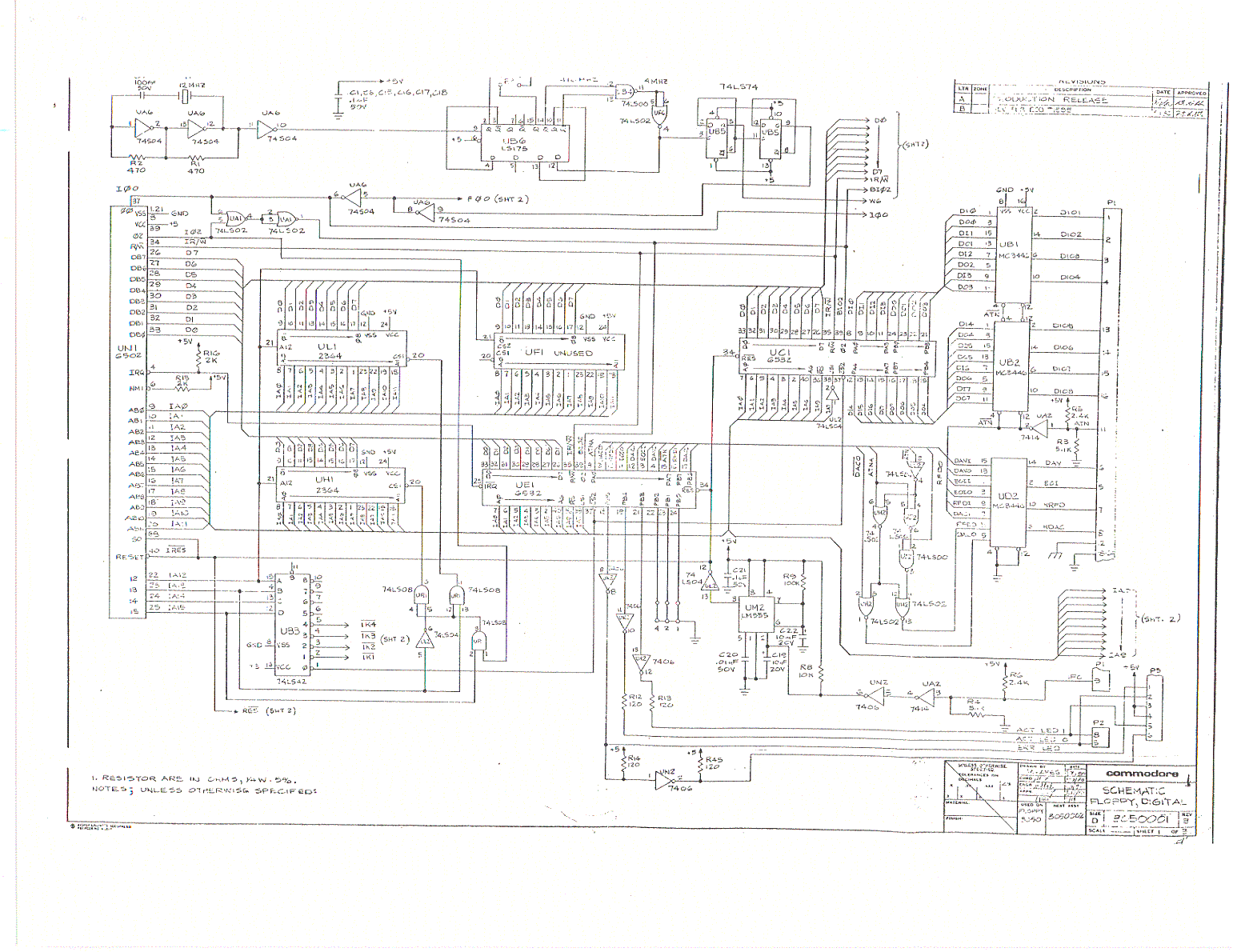

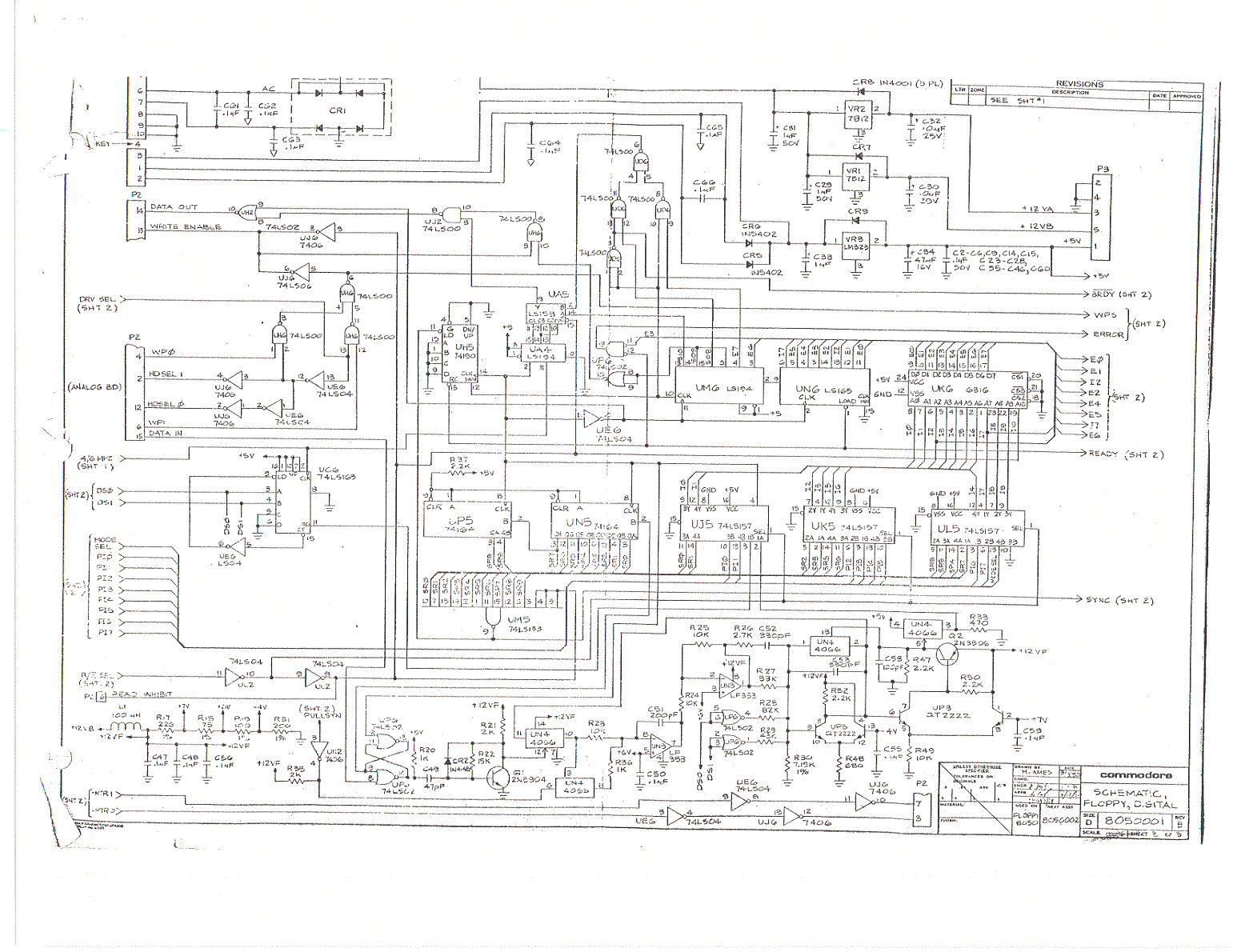

Commodore PET Digtial Floppy Schematics

Commodore PET Digtial Floppy Schematics

Commodore PET Digtial Floppy Schematics
